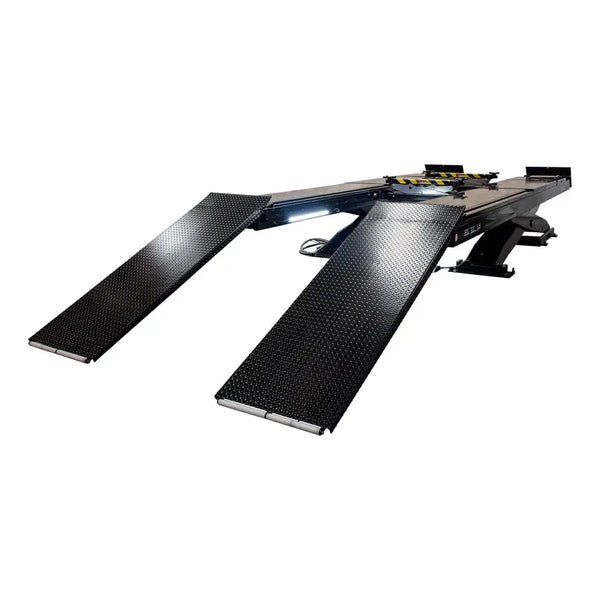

Challenger SX14 Alignment Rack Scissor Lift

+ Free Shipping

SX14 Series

14K Heavy-Duty Scissor Alignment Lift

Are you looking for an automotive scissor lift that is easy to operate, versatile, and efficient? Look no further than the Challenger SX14 series!

With adjustable turn plates, the SX14 can accommodate a wide range of wheelbase alignments, making it a perfect addition to automotive service centers that handle various vehicle types. The integrated LED lighting system and single locking point for the rear slip plates make the SX14 a safe and precise option for vehicle alignment.

For even greater versatility, the SX14 series features optional extended ramps that allow for the seamless loading of low-clearance vehicles. This feature expands the range of vehicles that can be serviced, making it an excellent investment for any automotive service center.

The SX14 series includes flush—and surface-mounted models, making it easy to integrate into any workshop space. Additionally, the kit includes two rolling jacks, adjustable turn plates, and an airline kit for dual jack operation, ensuring that automotive service professionals have everything they need to perform maintenance tasks easily.

Feautures

Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation
Extra wide runway width accommodates single and dual rear wheel vehicles
Photo cell ensures runway synchronization
Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
Twin hydraulic cylinders provide smooth operation
Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
Powder coat finish provides long-lasting durability
Can be mounted above ground or flush
ALI certified

Specifications

Model Number	SX14	SX14-ER	SX14-FM
Description	Standard	Extended Ramps	Flush Mount
Lifting Capacity*	14,000 lbs.	14,000 lbs.	14,000 lbs.
Rise Height	77”	77″	66.5″
Overall Length	265”	283″	265″
Overall Width	91.25”	91.25”	91.25”
Width of Runways	25.5”	25.5”	25.5”
Between Runways	40”	40”	40”
Lowered Height	10.5”	10.5”	–
Maximum Wheelbase	183”	183”	183”
Wheel Alignment (Max.)	176″	176″	176″
Wheel Alignment (Min.)	70.75″	70.75″	70.75″
Motor	3 HP	3 HP	3 HP
Voltage (Single Phase Std.)	208-240v (23 FLA)	208-240v (23 FLA)	208-240v (23 FLA)
Speed of rise	75 s	75 s	75 s
Air Required (filtered/lubricated)	90 – 120 psi (20CFM)	90 – 120 psi (20CFM)	90 – 120 psi (20CFM)
Min. Recommended Bay Size	14′ x 28′	14′ x 28′	14′ x 28′
ALI/ETL Certified	Yes	Yes	Yes
Color Available	Black	Black	Black

SX14-Spec-Sheet

SX14-IOM-A-2025-01-02

Category: Scissor Lift

Guaranteed Safe Checkout

Description
Reviews (0)

SX14 Series

14K Heavy-Duty Scissor Alignment Lift

Package includes two (2) rolling jacks, turn plates, and an airline kit for dual jack operation
Extra wide runway width accommodates single and dual rear wheel vehicles
Photo cell ensures runway synchronization
Automatic light feature illuminates the underside of the vehicle and turns off when lift is lowered below 18”
Maintenance-reduced rear slip plates use oversized, encapsulated bearings to protect against environment debris
Twin hydraulic cylinders provide smooth operation
Approach ramps are equipped with end rollers to minimize noise and reduce floor damage
Single point air actuated lock release allows ergonomic working height for technicians to increase productivity and minimize fatigue
Powder coat finish provides long-lasting durability
Can be mounted above ground or flush
ALI certified
