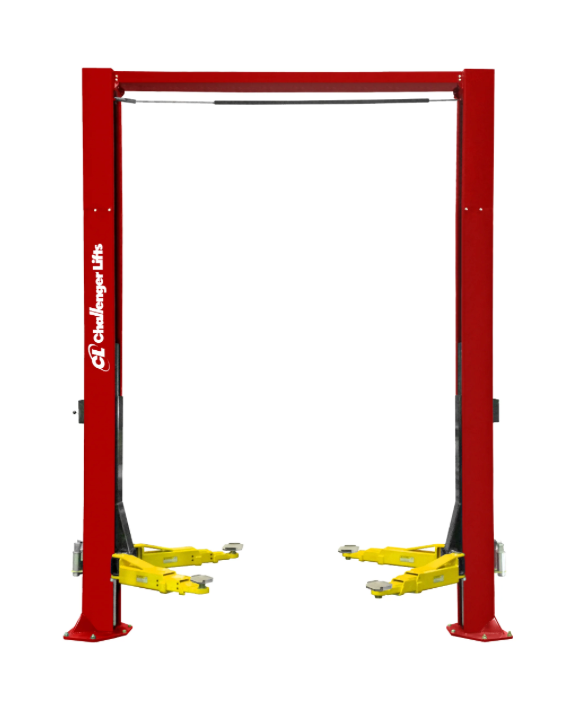

Challenger Lifts CL12A-2 Auto Lift 2Post 1Ph 2ft Height Extensions
Service more vehicles and make more money with Challenger Lifts’ New 12,000 lbs. 2-Post lifts, which now feature the same width adjustability we developed for our 16K & 20K 2-Posts.
Features
- Accommodate a wide range of standard cars, trucks, vans, and SUVs within the same service bay with +6″ & +12″ width adjustment (during installation)
- Alternative version +1′ column height extension available for purchase
- 3-Stage front and rear arms
- premium telescoping footpads.
- Adjustable Height
- Adjustable Width
- Geared Arm Restraints
- Single-Point Mechanical Lock Release System
- Oversized Steel Pulleys
- 60″ Lifting Carriage
- Padded Overhead Shut Off System
- Enhanced Screw Pads
- New Textured Powdercoating
- Premium telescoping screw pads adjust to multiple heights minimizing the need for additional adapters.
- Adjustable columns allow for flexibility during installation.
- Optional dual pendant controls improve spotting accuracy and allow lifting control from either column.
Specifications
| Model Number |
CL12A-2 |
| Lifting Capacity |
12,000 lbs. |
| Lifting Configuration |
Symmetric |
| Ceiling Height Required |
16′ 3″ Minimum |
| Speed of Rise (approximate) |
63s |
| Rise Height |
84.75″ |
| Floor to Overhead Switch |
14′ 8″ or 15′ 2″ |
| Overall Height |
15′ 2″ or 15′ 8″ |
| Screw Pad Height * |
5″ – 6.625″ |
| Arms |
3-stage front/3-stage rear |
| Arm Reach (Max.) |
59” |
| Arm Reach (Min.) |
27.5” |
| Adjustable Width Overall |
142″ / 148″ / 154″ |
| Drive-Thru Clearance |
103.5”, 109.5″ or 115.5″ |
| Inside Columns |
114.5″ / 120.5″ / 126.5″ |
| Motor / Voltage |
2HP, 208v-230v, 60Hz, 1Ph |
| Colors Available |
Red, Blue, Black |
| ALI® Certified |
Yes |
Optional Accessories (sold separately)
| Part No. |
Description |
| B2270 |
Standard Footpad |
| B2260 |
Round Rubber Footpad |
| B2280PR |
GM ® Truck Footpad Set |
| TFPK |
Electric Vehicle Footpad Kit |
| 10316 |
Organizer Rack |
| B99700 |
Tire Tool Center |
| B2206-3 |
3″ Adapter |
| 10313 |
6″ Adapter |
| 10314 |
Frame Adapters |
| 10333 |
Sprinter Kit |
Other Models
| Model Number |
CL12A |
CL12A-1 |
CL12A-2 |
CL12A-LC |
| Lifting Capacity |
12,000 lbs. |
12,000 lbs. |
12,000 lbs. |
12,000 lbs. |
| Lifting Configuration |
Symmetric |
Symmetric |
Symmetric |
Symmetric |
| Ceiling Height Required |
14′ 3″ Minimum |
15′ 3″ Minimum |
16′ 3″ Minimum |
12′ Minimum |
| Speed of Rise (approximate)** |
63s |
63s |
63s |
60s |
| Rise Height |
84.75″ |
84.75″ |
84.75″ |
80.75″ |
| Floor to Overhead Switch |
12′ 8″ or 13′ 2″ |
13′ 8″ or 14′ 2″ |
14′ 8″ or 15′ 2″ |
11′ 4.5″ |
| Overall Height |
13′ 2″ or 13′ 8″ |
14′ 2″ or 14′ 8″ |
15′ 2″ or 15′ 8″ |
11′ 11″ |
| Screw Pad Height * |
5″ – 6.625″ |
5″ – 6.625″ |
5″ – 6.625″ |
5″ – 6.625″ |
| Arms |
3-stage front/3-stage rear |
3-stage front/3-stage rear |
3-stage front/3-stage rear |
3-stage front/3-stage rear |
| Arm Reach (Max.) |
59” |
59” |
59” |
59″ |
| Arm Reach (Min.) |
27.5” |
27.5” |
27.5” |
27.5″ |
| Adjustable Width Overall |
142″ / 148″ / 154″ |
142″ / 148″ / 154″ |
142″ / 148″ / 154″ |
142″ / 148″ / 154″ |
| Drive-Thru Clearance |
103.5”, 109.5″ or 115.5″ |
103.5”, 109.5″ or 115.5″ |
103.5”, 109.5″ or 115.5″ |
103.5”, 109.5″ or 115.5″ |
| Inside Columns |
114.5″ / 120.5″ / 126.5″ |
114.5″ / 120.5″ / 126.5″ |
114.5″ / 120.5″ / 126.5″ |
114.5″ / 120.5″ / 126.5″ |
| Motor / Voltage |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
2HP, 208v-230v, 60Hz, 1Ph |
| Colors Available |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
Red, Blue, Black |
| ALI® Certified |
Yes |
Yes |
Yes |
Yes |
* Lift capacity ratings are based on loads equally distributed on all four arms.
** Lifting and lowering speeds may vary depending on the weight of the vehicle.CL12A-manual CL16-spec-sheetCL12A-manual
